HRC series
Output up to 6kV 5W
Features
- Precision high voltages up to 6kV at max. 5W
- Polarity positive or negative, factory fixed
- Low ripple <0.01%
- Load and line regulation <0.01%
- On-board +5V reference
- 0 to 100% programmable output voltage
- Voltage & current monitor outputs
- Short circuit, Arc and Overload protections
- Operating temperature: -40°C to +40°C
- +24VDC Input (22V to 30V)

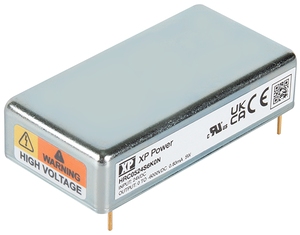

- PCB mountable module in metal case
- UL 61010 and 62368 approved
The HRC05 series is a miniature 5W regulated high voltage DC-DC converter product line providing voltages up to 6kV. HRC05 provides a well regulated and fully adjustable output voltage with built in short circuit and overload protection. The adjustable output voltage can be controlled from 0 to 100% with a 0 to +5VDC input.
Voltage and current monitor outputs and a +5VDC reference output are included in the standard package for easier high voltage integration. The input control and output monitor signals are digital compatible making these modules an ideal solution for a wide range of high voltage applications.
Dimensions: 64.8mm x 33.0mm x 15.2mm
Typical applications include: mass spectrometry, electrophoresis, electrostatic chuck, high voltage bias, capacitor charging, detectors and scanning electron microscopy.
Model Overview
| Output Voltage | Output Current | Model | VO | IO | Positive Polarity Output | Negative Polarity Output |
|---|---|---|---|
| 0 – 350 V | 14.30 mA | HRC05 24S 350P | HRC05 24S 350N |
| 0 – 600 V | 8.33 mA | HRC05 24S 600P | HRC05 24S 600N |
| 0 – 1.0 kV | 5.00 mA | HRC05 24S 1K0P | HRC05 24S 1K0N |
| 0 – 1.5 kV | 3.33 mA | HRC05 24S 1K5P | HRC05 24S 1K5N |
| 0 – 2.0 kV | 2.50 mA | HRC05 24S 2K0P | HRC05 24S 2K0N |
| 0 – 3.0 kV | 1.66 mA | HRC05 24S 3K0P | HRC05 24S 3K0N |
| 0 – 4.0 kV | 1.25 mA | HRC05 24S 4K0P | HRC05 24S 4K0N |
| 0 – 5.0 kV | 1.00 mA | HRC05 24S 5K0P | HRC05 24S 5K0N |
| 0 – 6.0 kV | 0.83 mA | HRC05 24S 6K0P | HRC05 24S 6K0N |
Disclaimer
The information given here is technical data, not assured product characteristics. It has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies. The user has to ensure by adequate tests that the product is suitable for his application regarding safety and technical aspects.
hivolt.de GmbH & Co. KG does not assume any liability arising out of the application or use of any product described.
Safety Advice
Design, installation and inspection of machinery and devices carrying high voltage require accordingly trained and qualified personnel. Appropriate safety rules and directives must be complied with.
Improper handling of high voltage can mean severe injuries or death and may cause serious collateral damage!
