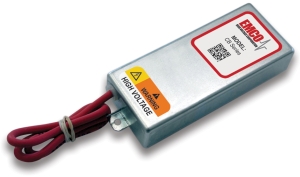

CB series
Output 10kV 1W
- Regulated
- 0 to 100% Programmable Output
- Low Noise, Quasi-Sinewave Oscillator
- Miniature Size
- High Stability
- Wide Input Voltage Range, 11.5V to 16V
- Very Low EMI/RFI
- High Reliability: MTBF >2.6 Million Hours per Bellcore TR-332
- Plated Steel Case with Isolated Case Ground
- Sealed to Withstand Immersion Cleaning Process
- External Gain Adjust for Calibration
- Built-in Programming Voltage Overvoltage Protection
- Built-in 5V Reference Voltage
- Built-in Thermal Shutdown
- Voltage and Current Monitor Outputs
- UL Certified Encapsulant, Meets 94V-0 Flammability
- RoHS Compliant
The CB Series is a line of miniature, well regulated high voltage power supplies providing clean and reliable high voltage in a shielded, PC-mount package. The modules are programmed from 0 to 100% of rated output via a 0 to +5V DAC compatible high impedance programming input voltage. Offering very low ripple and EMI/ RFI, these cost-effective power supplies are ideal for integration into compact, sensitive equipment.
The CB Series features current and voltage monitoring, built-in protection against programming overvoltage, and thermal shutdown. Temperature drift is typically less than 50ppm/°C. A built-in reference voltage source can be used in lieu of the programming voltage. An externally accessible potentiometer provides adjustable gain trim, allowing for individual calibration of units. A proprietary encapsulation process and high performance formula are used to achieve excellent high voltage and thermal properties.
These modules come in a positive or negative output voltage of 10kV. For voltages ranging from 100V to 8kV, see the C series.
|
Specifications:
|
Applications:
|
Model Overview
| Model | Output Voltage [VDC] |
Max. Output Current *1 [mA] |
Ripple *2 p-p |
|---|---|---|---|
| CB101 | 0 - +10000 | 0.1 | < 0.1% |
| CB101N | 0 - -10000 | 0.1 | < 0.1% |
*1 - At maximum rated output voltage
*2 - Typical performance at full-load
Disclaimer
The information given here is technical data, not assured product characteristics. It has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies. The user has to ensure by adequate tests that the product is suitable for his application regarding safety and technical aspects.
hivolt.de GmbH & Co. KG does not assume any liability arising out of the application or use of any product described.
Safety Advice
Design, installation and inspection of machinery and devices carrying high voltage require accordingly trained and qualified personnel. Appropriate safety rules and directives must be complied with.
Improper handling of high voltage can mean severe injuries or death and may cause serious collateral damage!
