Power Amplifiers / Magnet Power Supplies

9250

30MHz Differential / Dual-Channel Signal Amplifier

The 9250 is a bench-top, 2U, half 19” rack size, fully metal case dual channel amplifier. The instrument can be configured to be used as two, single-ended independent channels, or as a one input with two differential outputs. The waveform-amplifier combo is an ideal solution for virtually any high-voltage, wide bandwidth application.

Large signal bandwidth to 15 MHz
Small signal bandwidth to 30 MHz
High amplitude to 40Vp-p (into high impedance)
Slew rate to 500V/µs
Low distortion
Custom Configuration of: Gain, Input impedance, Output impedance, Output configuration

PA120A

pa120a_e.pdf

High-Speed High-Precision Power Amplifier
Power-bandwidth DC - 1.5 MHz
± 30 V_P / 10 A_P / 4 A_DC
Slew-Rate 250 V/µs
2 summing input-channels
C-load mode
DC-offset < 3 mV
Monitor Output
Sophisticated protection and limiting concept
Complete protection against overload, overtemperature and short circuit

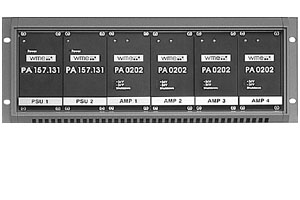

PA02-R

4 Channel Power Amplifier
40 W / 200 V_RMS / 0.2 A_RMS per channel
Power-bandwidth 45 Hz - 1000 Hz
Small-signal-bandwidth 5 Hz - 10 kHz
Monitor outputs for output current
Complete protection against overload, overtemperature and short circuit
Can be used as 4-phase AC source

Magnet Power Supplies

The magnet power supplies by our affiliate company WME Power Systems are being used in reputed research facilities, e.g. the electron storage ring BESSY II in Berlin. They satisfy the highest demands for precision and reliability.
