Standard high voltage connectors for voltages up to 100kV. We offer single and multi pin HV connectors in different designs. When required, cables can be supplied terminated with HV connectors.

57 SHV Series

SHV - STRAIGHT CABLE PLUG & SEALED BULKHEAD RECEPTACLE 5kV

Features:

  • Rated Voltage 5kVDC / 3.5kVRMS
  • Rated Current 500mA
  • Completed cable assemblies available
  • RoHS compliant

Applications:

  • Safe high voltage laboratory wiring
  • High voltage power supplies / amplifiers
  • Nuclear instrumentation
  • Test and measurement equipment

SHV (Safe High Voltage – Nuclear Instrumentation Module Standard) reverse polarity, coaxial high voltage connectors.

The straight cable plug 57K101‑106N3 and the rear mount bulkhead crimp receptacle 57S507‑106N4 are compatible with standard RG58‑C/U or our 20kV rated LSZH HRG58‑20‑2 coaxial cable for crimp assembly. For high temperature applications it can also be assembled with silicone or FEP insulated coaxial cable HSL-10S‑0.5‑A‑2 or HRG303-40-B-2, respectively.

The outer ground connection is maintained during unintended mating/unmating. The center contacts are recessed to prevent shock hazard when the connectors are mated. For personal safety the connectors should not be mated or unmated when energized!
The connectors are RoHS compliant.
Remark: SHV and BNC connectors are not intermateable.


SINGLE POLE HIGH VOLTAGE CONNECTORS 10kV – 100kV

Features:

  • Up to 100kVDC
  • Oil-Tight Receptacles Available
  • PTFE Insulation
  • Low Contact Resistance
  • Extended Temperature Range
  • Made in Germany
  • Completed Cable Assemblies Available

Applications:

  • Instrument High Voltage Connections
  • Test Stations

The single pole high voltage connector pairs HC7M-xx (cable mounting plug) and HC7F-xx (instrument mounting receptacle) are available for operating voltages of up to 100kVDC in 30A or 80A versions. The connectors are suitable for use with shielded/screened high voltage cable.

The silver-plated central contact, the strong nickel-plated housing and the screw interlock warrant a safe and reliable connection. The cable is fixed to the connector housing by means of an integrated cable gland. The cylindrical wedging results in a strong mechanical connection and an excellent shield connection. Five different sizes of cable glands are available providing usability of a wide range of cable diameters. An external cable gland may be utilized using an M20x1.5 or M25x1.5 adaptor.

The connectors are available with PTFE insulation and extended operating temperature range. Optionally the receptacles are available as oil-tight versions. Recessed male contacts may be ordered for the 20kV/80A connectors.


HC51 Series

STRAIGHT COAXIAL HIGH VOLTAGE CONNECTORS 10kV

Features:

  • Rated Voltage 10kVDC
  • Recessed Contacts
  • Coaxial Design
  • Bayonet Coupling
  • Intermateable With Industry Standard
    10kV Coaxial Connectors
  • Completed Cable Assemblies Available
  • RoHS compliant

Applications:

  • Instrument High Voltage Connections
  • High Voltage Power Supplies / Amplifiers
  • Medical Electronics
  • Nuclear Instrumentation
  • Test and Measurement Equipment
  • High Voltage Laboratory Wiring
  • General High Voltage Testing

10kV reverse polarity coaxial high voltage connectors designed to minimize the risk of electrical shock to personnel through the use of recessed contacts. Both the cable connectors and the bulkhead receptacles have recessed contacts and will stand off the rated voltage in unmated condition.
The front mount receptacles are hermetically sealed.

The straight crimp cable plug HC51P-58 and the rear mount crimp receptacle HC51RB-58 are compatible with our 20kV rated LSZH HRG58-20-2 coaxial cable for solder assembly.
For high temperature applications up to 8kVDC the connectors can also be assembled with silicone or FEP insulated coaxial cable HSL-10S-0.5-A-2 or HRG303-40-B-2, respectively.

HC51 series connectors are not intermateable with SHV or HC52 series connectors.


HC52 Series

STRAIGHT COAXIAL HIGH VOLTAGE CONNECTORS 20kV

Features:

  • Rated Voltage 20kVDC
  • Recessed Contacts
  • Coaxial Design
  • Bayonet Coupling
  • Intermateable With Industry Standard
    20kV Coaxial Connectors
  • Completed Cable Assemblies Available
  • RoHS compliant

Applications:

  • Instrument High Voltage Connections
  • High Voltage Power Supplies / Amplifiers
  • Medical Electronics
  • Nuclear Instrumentation
  • Test and Measurement Equipment
  • High Voltage Laboratory Wiring
  • General High Voltage Testing

20kV reverse polarity coaxial high voltage connectors designed to minimize the risk of electrical shock to personnel through the use of recessed contacts. Both the cable connectors and the bulkhead receptacles have recessed contacts and will stand off the rated voltage in unmated condition.
The front mount receptacles are hermetically sealed.

The straight cable plug HC52P-58 is compatible with our 20kV rated HRG58-20-2 and our 40kV rated UL recognized HRG303-40-U-A-2 coaxial cable.

The straight cable plug HC52P-HTV30S is compatible with our 30kV rated UL recognized HTV-30S-22-2 coaxial cable variants.

The straight cable plugs HC52P-213 and HC52P-214 are compatible with our 20kV rated HRG213-20-B-2, HRG213-20-C-2 or standard RG 213 / RG 214 coaxial cable.

HC52 series connectors are not intermateable with SHV or HC51 series connectors.


HC55A Series

SHV HIGH VOLTAGE CONNECTORS 5kV

Features:

  • Rated Voltage up to 5kVDC/3.5kVRMS
  • Recessed Contacts
  • Available with PTFE and PEEK Insulators
  • Completed Cable Assemblies Available
  • RoHS Compliant

Applications:

  • Instrument High Voltage Connections
  • High Voltage Power Supplies / Amplifiers
  • Medical Electronics
  • Nuclear Instrumentation
  • Test and Measurement Equipment
  • Safe High Voltage Laboratory Wiring

5kV SHV (Safe High Voltage – Nuclear Instrumentation Module Standard) reverse polarity, coaxial high voltage connectors with high temperature PTFE or high temperature / radiation tolerant PEEK insulators.

The straight cable plugs are compatible with coaxial cable groups RG58 or RG316.

For suitable cable please see our PE-X insulated HRG58-20-2 or HRG58-20-VX-U-2, FEP insulated high temperature HRG303-40-XV-U-2, HRG316-10-B-2 or silicone insulated high temperature HSL-10S-0.5-A-2 types.

Please see the HC51 or HC52 series for 10kVDC or 20kVDC models, respectively.

SHV connectors are not intermateable with HC51, HC52, MHV or BNC connectors.


HS/HB Series

SINGLE POLE HIGH VOLTAGE CONNECTORS 10/20/30/40kV

Features:

  • Up to 40kVDC / 30A
  • 100,000 Mating Cycles
  • UL94 V-0 Flammability Rating
  • Extended Temperature Range
  • Central Attachment
  • Completed cable assemblies available
  • Low Cost
  • Made in Germany

Applications:

  • Instrument High Voltage Connections
  • Test Stations

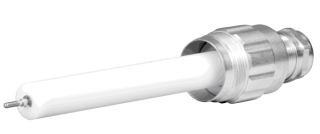

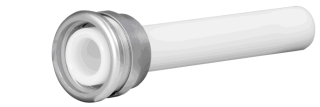

The single pole high voltage connector pairs HSxx (cable mounting connector) and HBxx (instrument mounting socket) are available for operating voltages of 10kVDC, 20kVDC, 30kVDC and 40kVDC. The connectors are suitable for use with shielded/screened high voltage cable.

The silver-plated central contact, the strong nickel-plated housing and the screw interlock warrant a safe and reliable connection. Extended operating temperature range due to PTFE insulation. Some models are available with POM insulation on request.


1/2/3 POLE HIGH VOLTAGE CONNECTORS 13kV, 13A

Features:

  • Rated Voltage 13kVDC
  • Rated Current 13A
  • Perfect for Internal Wiring
  • Fast Assembly
  • High Flexibility due to Several Mounting Options
  • Clip Lock
  • Low Cost
  • Made in Germany

The VP-CL series of high voltage connectors is available in 1, 2 or 3 pole versions. A Clip Lock mechanism permits easy mating and unmating and ensures that the plug will be locked to the receptacle when mated. Intended for internal wiring these high voltage connectors feature versatile mounting options. The connectors can be used unmounted with flying leads, mounted as a feedthrough or mounted on the surface of a structural part.

Crimp contacts used for easy assembly are available for wire sizes of AWG26 to AWG14.
